Audio Technica AT-VM95E Replacement Cartridge


Model #:

AT-VM95E

Model #: AT-VM95E
278981
Audio-Technica
$99,999.00

At a Glance

Product Dimensions 2.68"h x 2.74"w x 3.2"d

Audio Technica AT-VM95E Replacement Cartridge for sale. Shop your authorized Audio Technica dealer for the best turntable cartridge deals.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

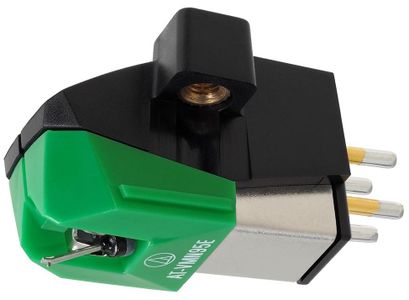

Audio Technica AT–VM95E | Replacement Cartridge

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half–inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low–resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT–VMN95 replacement styli. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus

Aluminum cantilever

Specially wound coils increase output voltage

Durable low-resonance polymer housing

Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

Compatible with any AT-VMN95 replacement stylus

Specifications

General Specs

Product Weight (lbs.)1
ColorBlack/Green
Depth (in.)3.2
Width (in.)2.74
Height (in.)2.68
MPNAT-VM95E
Manufacturer Warranty1 Year Parts & Labor
Manufacture Part NumberAT-VM95E

General

Frequency Response20-22,000 Hz
Channel Separation20 (dB at 1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8-2.2 g (2.0 g standard)
Stylus ConstructionBonded round shank
Recommended Load Impedance47,000 ohms
Coil Impedance3.3 k ohms (1 kHz)
DC Resistance485 ohms
Coil Inductance550 mH (1 kHz)
Load Capacitance100 to 200 pF
Output4.0 mV (1 kHz, 5 cm/sec.)
Channel Balance2.0 dB (1 kHz)
Stylus Shape0.3 x 0.7 mil elliptical
CantileverAluminum pipe
MountHalf-inch
Weight6.1 g (0.22 oz)
Dimensions17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Replacement StylusAT-VMN95E
Accessories IncludedTwo 11 mm installation screws, two 8 mm installation screws, two washers
