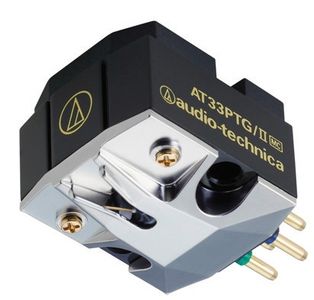

Audio-Technica Dual Moving Coil Cartridge


Model #:

AT33PTG/2

Model #: AT33PTG/2
343373
Audio-Technica
$99,999.00

At a Glance

Product Dimensions 0.63"h x 0.65"w x 1.04"d

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction

Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies

Neodymium magnet and permendur yoke dramatically enhance the magnetic energy

PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

High-separation, wide-response dual moving coil

Strong, rigid housing limits unnecessary vibration

Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio

Specifications

General Specs

Product Weight (lbs.)0.02
Depth (in.)1.04
Width (in.)0.65
Height (in.)0.63
Manufacturer Warranty1 Year

General

Frequency Response15-50,000 Hz
Channel Separation30 dB (1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8-2.2 g (2.0 g standard)
Recommended Load ImpedanceMore than 100 ohms (when head amplifier is connected)
Coil Impedance10 ohms (1 kHz)
DC Resistance10 ohms
Coil Inductance22 µH (1 kHz)
Output0.35 mV (at 1 kHz, 5 cm/sec)
Channel Balance0.5 dB (1 kHz)
Stylus ShapeMicrolinear
Stylus TypeNude square shank
Stylus Curvatre Radius2.2 x 0.12 mil
CantileverGold-plated nude tapered boron
Static Compliance40 x 10-6 cm/dyne
Dynamic Compliance10 x 10-6 cm/dyne (100 Hz)
MountHalf-inch
Weight6.9 g (0.24 oz)
Dimensions16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D
Accessories IncludedNon-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set
