Audio-Technica Fully Manual Belt-Drive Turntable


Model #:

AT-LPW40WN

Model #: AT-LPW40WN
292240
Audio-Technica
$99,999.00

At a Glance

Product Dimensions 4.6"h x 16.53"w x 13.38"d

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

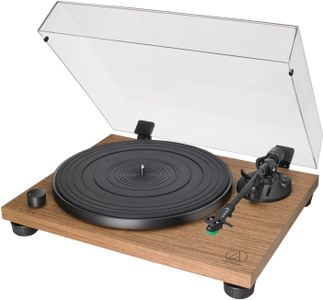

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM

Motor features a speed-sensor system to maintain accurate platter rotation speed

Fully manual operation

Adjustable dynamic anti-skate control

Professional anti-resonance, die-cast aluminum platter with rubber mat

AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus

AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest

Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer

Built-in switchable phono pre-amplifier for phono or line-level output

AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Useful Documents
Specifications

General Specs

Product Weight (lbs.)10.4
ColorLight Brown
Width (in.)16.53
Depth (in.)13.38
Height (in.)4.6
Signal to Noise Ratio60
Drive TypeBelt-Drive
Turntable Speed33-1/3 RPM, 45 RPM
Manufacturer Warranty1 Year

General

TypeBelt-drive manual turntable
MotorDC servo with Active Speed Stabilization
Drive MethodBelt drive
Speeds33-1/3 RPM, 45 RPM
Turntable PlatterDie-cast aluminum
Wow and Flutter< 0.15% WRMS (33 RPM) at 3 kHz
Signal-To-Noise Ratio>60dB
Output LevelPre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec ; Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain35 dB nominal, RIAA equalized
Power Supply Requirements100-240 V, 50/60 Hz, 0.5 A Max.
Power Consumption110 V 60 Hz , Working: 1.1 W, Motor off: 1.0 W, Power off: 0.1 W
Dimensions420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
Weight4.72 kg (10.40 lbs.) without dust cover
Accessories IncludedDust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges
Tonearm TypeStatic balanced straight carbon tonearm
Effective Arm Length223.6 mm
Overhang18.6 mm
Tracking Error Angle<2 degrees
Applicable Cartridge Weight12-17 g
Stylus Pressure Adjustment Range0-3 g
AC Adapter12 V, 0.5 A
Replacement StylusAT-VMN95E
WarningProposition 65 Warning for California Residents
