Product Dimensions 1.85"h x 7.78"w x 4.94"d

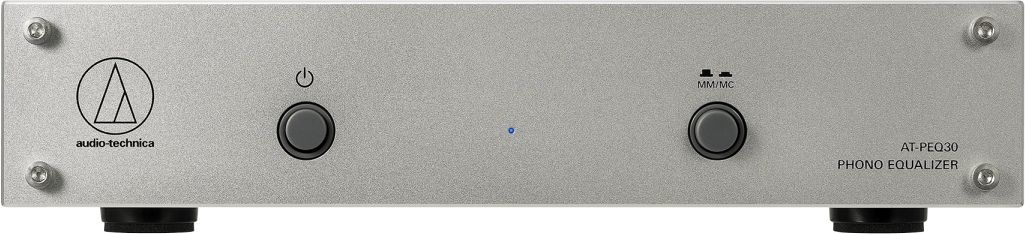

The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntable’s built-in phono preamplifier. It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technica’s years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.Read More
Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges
High-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
Precision components provide an excellent RIAA response for best-in-class performance
The all metal construction enclosure provides superior isolation from radio and electronic noise interference
The machined aluminum front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout
General Specs | |
| Product Weight (lbs.) | 1.96 |
| Depth (in.) | 4.94 |
| Width (in.) | 7.78 |
| Height (in.) | 1.85 |
| Wattage | 2.5 |
| Amp | 1.2 |
| Color/Finish Name | Silver |
| Manufacturer Warranty | 1 Year Limited |
Phono Equalizer | |
| Input Impedance | MM type: 47 kiloohms, MC type: 120 ohms |
| Input Sensitivity | MM type: 4.5 mV, MC type: 0.28 mV |
| Rated output | MM type: 250 mV, MC type: 250 mV |
| Gain | MM type: 35 dB, MC type: 59 dB |
| Signal-to-Noise Ratio | MM type: 100 dB, MC type: 74 dB |
| RIAA Deviation | (20 to 20,000 Hz) MM type: ±0.5 dB (20 to 20,000 Hz) MC type: ±0.5 dB |
| Power Supply | DC 15 V, 1.2 A |
| Power Consumption | 2.5 W |
| Dimensions | 47 mm (1.85") H x 197.5 mm (7.78") W x 125.5 mm (4.94") D (excluding protrusions) |
| Weight | 890 g (31.4 oz) |
| Accessories Included | AC adapter |
