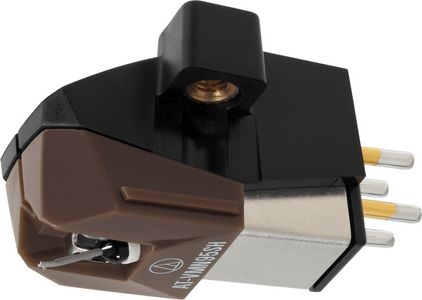

Audio-Technica VM95 Series Dual Moving Magnet Cartridge

Audio-Technica

Model #:

AT-VM95SH

Model #: AT-VM95SH
1264866
Audio-Technica
$99,999.00

At a Glance

Product Dimensions 0.68"h x 0.74"w x 1.2"d

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus

Aluminum cantilever

Durable low-resonance polymer housing

Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

Compatible with any AT-VMN95 replacement stylus

Useful Documents
Warranty
Specifications

General Specs

Product Weight (lbs.)0.01
Width (in.)0.74
Depth (in.)1.2
Height (in.)0.68
Frequency Response20-25,000 Hz
Color Finish NameBlack/Brown
Manufacturer Warranty1 Year Limited
CollectionVM95 Series

Cartridge & Stylus

Channel Separation23 (dB at 1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force1.8-2.2 g (2.0 g standard)
Stylus ConstructionNude square shank
Recommended Load Impedance47,000 ohms
Coil Impedance3.3 k ohms (1 kHz)
DC Resistance485 ohms
Coil Inductance550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 2.7 x 0.26 mil Shibata
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.1g
Dimensions 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model AT-VM95SH
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Stylus Size 2.7 x 0.26mil
TypeVM Stereo Dual Magnet
Weight6.1 g (0.22 oz)
Wire Used for Coil T.P. Copper
Replacement Stylus AT-VMN95SH
