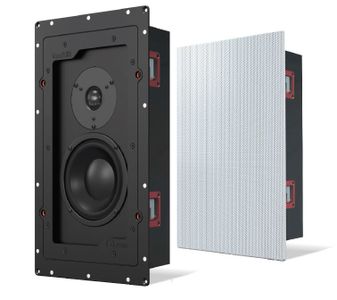

Leon® Vault Series 5" Ultra-Thin In-Wall Speaker

Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The Vault v55 speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.

• Fully sealed and tuned enclosure constructed from 3/4″ MDF
• Timbre-matched to our Horizon Hz55 and Profile Pr55 Series speakers
• At only 3.75” deep, they fit easily into any standard wall
• Thin framed, removable magnetic grills can be custom painted in-house to match any color swatch or paint code
• Re-engineered mounting system for easy installation
• Recommended Pairings: Hz55, Pr55, A10-UT

Specifications

• Material: Sealed MDF enclosure
• Finish: Paintable grills (custom factory finish available)
• Grill: Perforated metal
• Connections: Spring loaded terminals
• Components: 5″ ultra-thin woofers; 1″ silk-dome tweeters
• Impedance: 6Ω
• Recommended Power: 25-125W
• Max. Output: 104dB avg, 110dB peak
• Coverage: Vert: 110°, Hor: 140°
• Frequency Response: 100–20kHz (+/- 3dB)
• Sensitivity: 88dB @ 2.83V/1m
• Mounting: Swing out “dog-leg” system

Dimensions

• Outer Dimensions: 9.75” W x 16.25” H
• Cutout: 8.25” W x 13.75” H
• Depth: 3.75”; 4” (with grill)
• Weight: 20-40 lbs.
