Music Hall 2 Speed Turntable

Product Overview

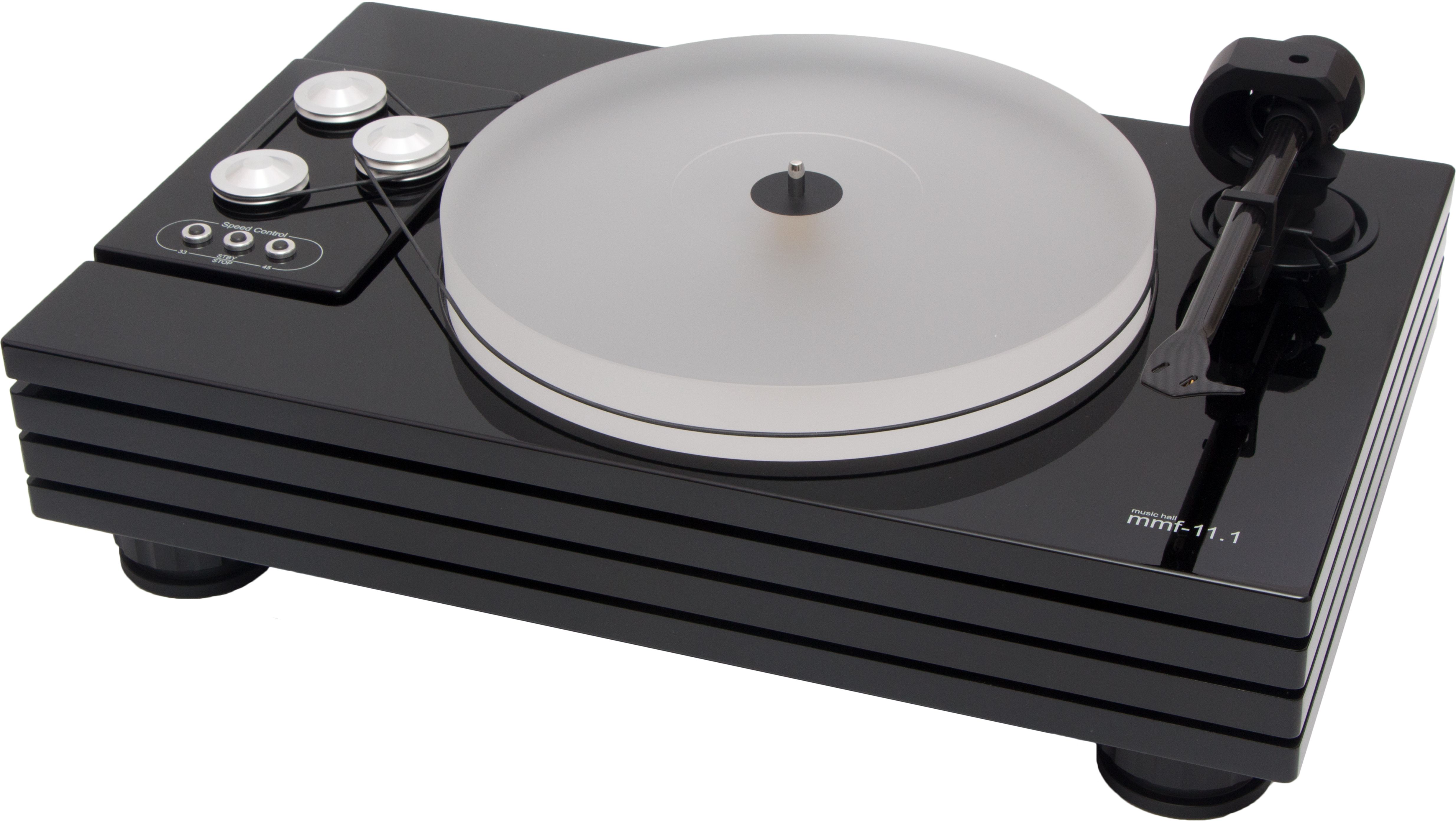

The music hall mmf-11.1 turntable, our latest flagship, is a 2-speed belt-driven audiophile turntable, featuring the unique quadruple-plinth construction originated by music hall.

The distinctive design isolates the critical sound reproducing components, each on their own plinth. The tonearm is mounted to the upper plinth and the inverted ceramic main bearing is mounted to the second plinth allowing the partially sunken 1 1/2″ acrylic platter to spin freely.

Moving the main bearing to the second plinth improved cartridge tracking and significantly lowered background noise. The adjustable magnetic-levitation isolation feet, microprocessor speed control, motors, flywheel, and wiring are all mounted to the bottom plinth. The motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform, which is separately isolated from the upper three main plinths.

Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth functions as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The mmf-11.1 comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dustcover is included.

Music hall’s unique quadruple-plinth design w/sorbothane vibration isolation

One-piece project ‘9cc evolution’ carbon fiber tonearm

The arm uses four hardened swiss abec 7 ball races in an inverted bearing design

Tonearm is internally wired with flexible wire drawn from high purity copper with only two contact points from cartridge to output connectors

Counterweight’s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper

Fully adjustable azimuth, vta, and dampened arm lift

Exclusive microprocessor electronic speed controlled dual motor single flywheel drive system

33 1/3 and 45 rpm speed change at the touch of button

Motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth

The dual motor flywheel system 1000 generic sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge

Magnetic-levitation adjustable isolation feet

Inverted ceramic main bearing for super quiet fluid operation

Thick acrylic platter

Removable acrylic dustcover

High quality, gold rca connectors with detachable phono cable

Low noise fully manual belt-drive design, dustcover, 45rpm adaptor

Ships securely in a substantial wood box

Excellent instruction manual and easy assembly
