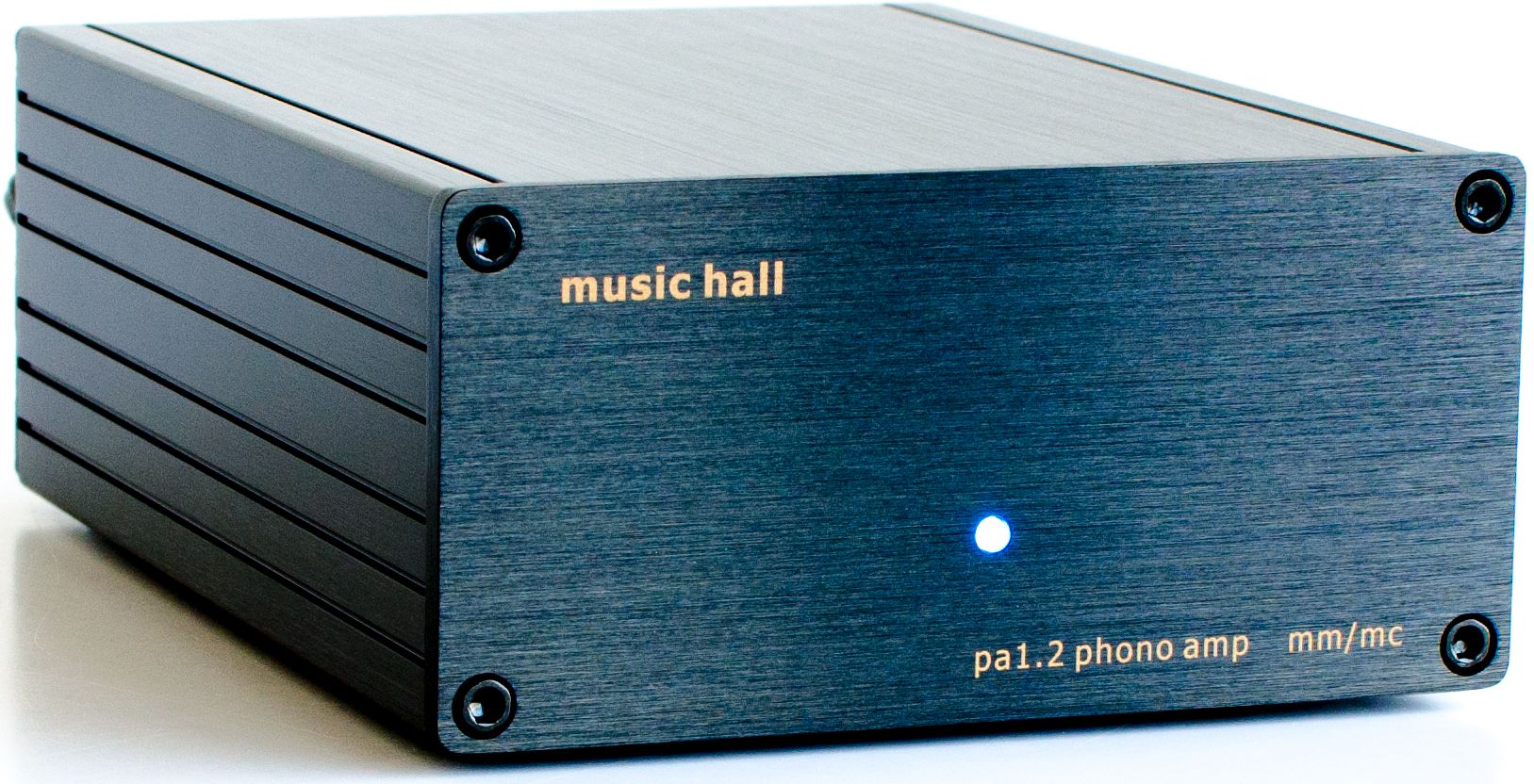

The pa1.2 is a low-noise, high-quality phono preamp that accepts both moving magnet and moving coil cartridges. The beautifully finished extruded and generic aluminum box wards off the effects of stray magnetic fields and provides a safe quiet environment for the sensitive electronics it houses.

Music Hall Phono Amplifier with a low noise high quality phono pre amp that accepts both moving magnet and moving coil cartridge

Music Hall Phono Amplifier

Input sensitivity mm/mc: 5mv/1khz / 0.45mv/1khz

Input impedance mm/mc: 47Kohms/120pf / 100 ohms/120pf

Output voltage typically mm/mc: 300mv at 1khz – 3mv (MM Input) / 0.3mv (MC input)

Total harmonic distortion mm/mc: <0.01 / <0.05%

SNR mm/mc: -86dB / -68dB (-94dB / -75 dB A weighted)

General Specs
Product Weight (lbs.)	3
Depth (in.)	6
Width (in.)	4.2
Height (in.)	2.1
Color	Black
Color Finish Name	Black
Connections
Headset Jack:	Yes
Specifications
Impedance:	100 Ohms
