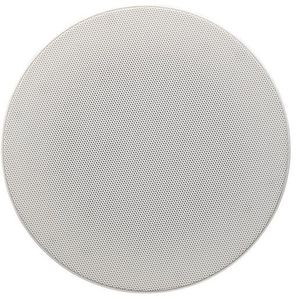

Name: Yamaha® 8" In-Ceiling Speaker
Brand: Yamaha
SKU: 16336
Availability: OutOfStock

Default Dev Script Validation

<avb-header-after>  <avb-designer-block data-id="27" class="avb-grid avb-typography dsg-block-27-header-after"> <div class="avb-grid__column avb-grid__column--small-12 dsg-tools-nomp"> <avb-link class="avb-wrapper dsg-tools-color-light dsg-block-27-header-after__contentA" data-href="https://www.noav.com/email-list-subscribe">  <span class="dsg-tools-ff-primary dsg-tools-fw-regular dsg-block-27-header-after__headline"> Sign Up for Our Monthly Newsletter&nbsp;Today! </span> </avb-link>   </div> </avb-designer-block> </avb-header-after> <style> /* ==================== Header-after (block-27-header-after) ==================== */ .dsg-block-27-header-after__contentA, .dsg-block-27-header-after__contentA:visited, .dsg-block-27-header-after__contentA:focus { display: block; text-align: center; padding: 0.55rem; background: #000; color: #fff; } .dsg-block-27-header-after__contentA:hover { color: #6060ff; } .dsg-block-27-header-after__contentB, .dsg-block-27-header-after__contentB:visited, .dsg-block-27-header-after__contentB:focus { display: block; text-align: center; padding: 0.55rem; background: #000; color: #fff; } .dsg-block-27-header-after__contentB:hover { color: #000; } .dsg-block-27-header-after__headline { font-size: 1.15rem; line-height: 1.3; transition: .3s; } @media screen and (min-width: 600px) {} @media screen and (min-width: 960px) {} @media screen and (min-width: 1280px) {} @media screen and (min-width: 1600px) {} </style>

Default Header After Global Promotions

16336/NS-IC800WH.pdf

16336/21b28a9b-f38f-434b-bed3-9b9ff28e7df9.jpg

16336/d3744da4-9d79-44c2-90fd-f8016e1a941b.jpg

16336/8f86ad79-0e73-4bb5-baa1-61328415a705.jpg

Yamaha In-Ceiling Speakers with grain-finished acoustic baffle and a spiral pattern for natural sound dispersion. An easy-to-install in-ceiling speaker system that has magnetic grilles and high sound quality designed to meet various custom installation requirements.

Yamaha® 8" In-Ceiling Speaker

Moisture resistant 8" blue PP (polypropylene) mica cone woofer for high performance mid-low sound reproduction

1" fluid-cooled soft-dome swivel tweeter delivers pure high frequency with precise sound positioning

General Specs
Product Weight (lbs.)	8.4
Color Finish Name	White
RMS Power Handling (Watts)	140
Color	White
Impedance	8 ohms
Maximum Power Handling (Watts)	140
Number of Speakers	2
Speaker Type	In-Ceiling Speakers
Depth (in.)	4.5
Height (in.)	10.75
Woofer Size	8”
Connections
Connector Type:	Spring Loaded Post
Construction
Tweeter Composition:	Soft Dome
Woofer Composition:	Mica Filled Cone
Dimensions
Width:	10.75
Mount Depth:	4.25
Other
Sold As:	Pair
Specifications
Recommended Usage	In-Ceiling Front / Surround Speakers
Type	2-way coaxial
Woofers	8” PP (polypropylene) mica cone
Tweeters	1” fluid-cooled soft dome
Swivel Tweeter and Midrange Driver	(Tweeters)
Paintable Grill with Protective Cover Included	Yes
Frequency Response	50 Hz – 28 kHz
Sensitivity	90 dB (2.83 V, 1 m)
Input Power (Maximum / Nominal)	140W / 50W
Impedance	8 Ohms
Product Dimensions (W x H x D)	10-3/4" x 4-1/2"
Mounting Depth	4-1/4”
Product Weight (lbs. each)	4.2
